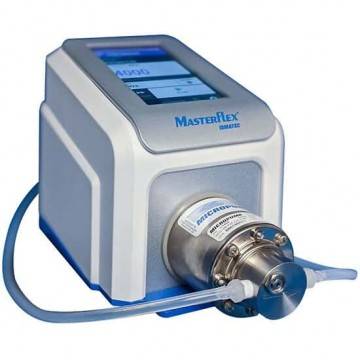

Ismatec® Reglo Gear Pump Systems with MasterflexLive®

Ismatec® Reglo Gear Pump Systems with MasterflexLive®

For order related query plaese email us at info@divinetechscientific.com

Achieve high pressure and accurate, pulseless flow - with a secure, cloud-enabled platform for control

Enquiry Now
  • MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps
  • Systems come with a Micropump® A-mount gear pump head for flow ranges from 1.7 to 4680 mL/min
  • Glove-friendly 5” (12.7 cm) capacitive TFT/RGB touch screen offers crisp resolution and a wide viewing angle
  • Flexible operational control via screen, MasterflexLive®, or analog remote control
  • Compact, benchtop pumps optimize ease of use, accuracy, and reliability
  • Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
  • Easily save and retrieve commonly used dispense programs for rapid setup
  • Speed ramping available in Volume dispense mode – ensure accuracy and minimize sample loss
  • Three-level user access – gives you the option of controlling who can operate the pump and at what level
The Reglo gear pump systems offer precise flow control and highly accurate fluid dispensing ideal for laboratory, process, and field use. All Reglo precision drives include a highly accurate, maintenance-free motor and an easy-to-navigate touch screen that makes setup and operation easier than ever. The paired gear pump heads provide smooth pulseless flow for precise, leak-free delivery of fluids. The magnetic drive and static seals keep fluids securely inside and potential contaminants out of the pump head.

MasterflexLive® functionality allows for real-time remote pump control and monitoring. It allows control of all pump parameters, including speed, flow rate, dispense volume, and more. Critical proccesses can be monitored and adjusted 24/7 without the need for onsite personnel. In addition, push notifications alert you to operating conditions and error messages. Internet connection via Wi-Fi or standard Ethernet (RJ45) jack available on the rear of drive. A USB connection allows for downloadable firmware updates to be loaded into the pump.

Specifications & Description



Series Reglo
Control Type Digital
Min RPM 0.1
Max RPM 350
Number of Channels 1
  • SeriesReglo
  • Control TypeDigital
  • Min RPM0.1
  • Max RPM350
  • Number of Channels1
  • Max Flow Rate (mL/min)365
  • Min Flow Rate (mL/min)0.004
  • Max Flow Rate Per Channel (mL/min)365
  • Min Flow Rate Per Channel (mL/min)0.004
  • DriveReglo
  • Pump Head77220-20 (L/S® Miniflex® Head)
  • Tubing sizes acceptedL/S® 13, 14, 16, 25
  • Drive IP ratingIP 31
  • Washdown CapableNo
  • Max Pressure (PSI)45
  • Max Pressure (bar)3
  • Duty CycleContinuous
  • Power (VAC)90 to 260
  • Accuracy±0.1%
  • Number of Rollers3
  • Power (Hz)50/60
  • Width (in)5.8
  • Height (in)6.3
  • Length (in)9
  • Width (cm)14.7
  • Height (cm)15.7
  • Length (cm)22.9
  • Open-Head SensorYes
  • Housing MaterialABS Plastic and Aluminum
  • Reversible MotorYes
  • Remote I/ORJ45 Ethernet; USB; 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via DB-25
  • Anti-DripYes
  • Cloud ConnectedYes
  • Digital DispensingYes
  • DescriptionReglo Miniflex® Digital Pump with MasterflexLive™, Single-Channel; 115/230 VAC
Two year warranty

INCLUDES

Pump drive, pump head, and power adapter with 6-ft (1.8-m) line cord.

KEY FEATURES

  • Compact, benchtop pumps optimize ease of use, accuracy, and reliability
  • 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
  • Flexible operational control via screen, MasterflexLive, or analog remote control
  • Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
  • Pump lets you save and retrieve commonly used dispense programs for rapid set up
  • Anti-drip and speed ramping available in Volume dispense mode – ensure accuracy and minimize sample loss
  • Miniflex pump head accepts continuous tubing for clean, uninterrupted fluid paths
  • Three-level user access – gives you the option of controlling who can operate the pump and at what level
  • Single-channel model delivers flow range of 0.004 to 365 mL/min per channel
  • Open-head sensor stops the drive when the pump head is opened

MORE ABOUT THIS ITEM

MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters – including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages.
Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump.
The Miniflex pump head features a wide occlusion angle that prevents fluid backflow up to the rated pressure of the tubing. Self-lubricating thermoplastic polyester rollers are low friction and long wearing for smooth operation and long life.
